ReGen ™ software for GNSS RF simulator

ReGen ™ GNSS Signal Generator

Functions.

* Simulates various ionospheric, tropospheric models, various code and carrier errors, ionospheric scintillation, fault scenarios (RTCA LAAS ICD and FAA CAT-1 LAAS spec).

* Ionospheric gradient error editor.

* Navigation message editable parameters and bits.

* Multipath simulation.

* Orbit input: RINEX, YUMA, or manual.

Standard version

Standard version allows to use all main models, besides advanced ionospheric models, multipath simulation, spatial errors simulation for reference receivers, and some other models. It also doesn’t include single channel simulator.

Professional version

Scintillation simulation, NeQuick ionospheric model , bubble model, multipath simulation.

Single channel simulator.

Development version with API

Development version includes ReGen ™ models with source code and application programming interface (API) and matching iPRx software receiver. It allows a user to implement custom algorithms and models within developed and optimized simulator+receiver framework without need to spend time and efforts in developing own complete solutions.

Price:

Please inquire .

High fedelity, inexpensive, flexible, multi-frequency GNSS simulation solution for R&D and education.

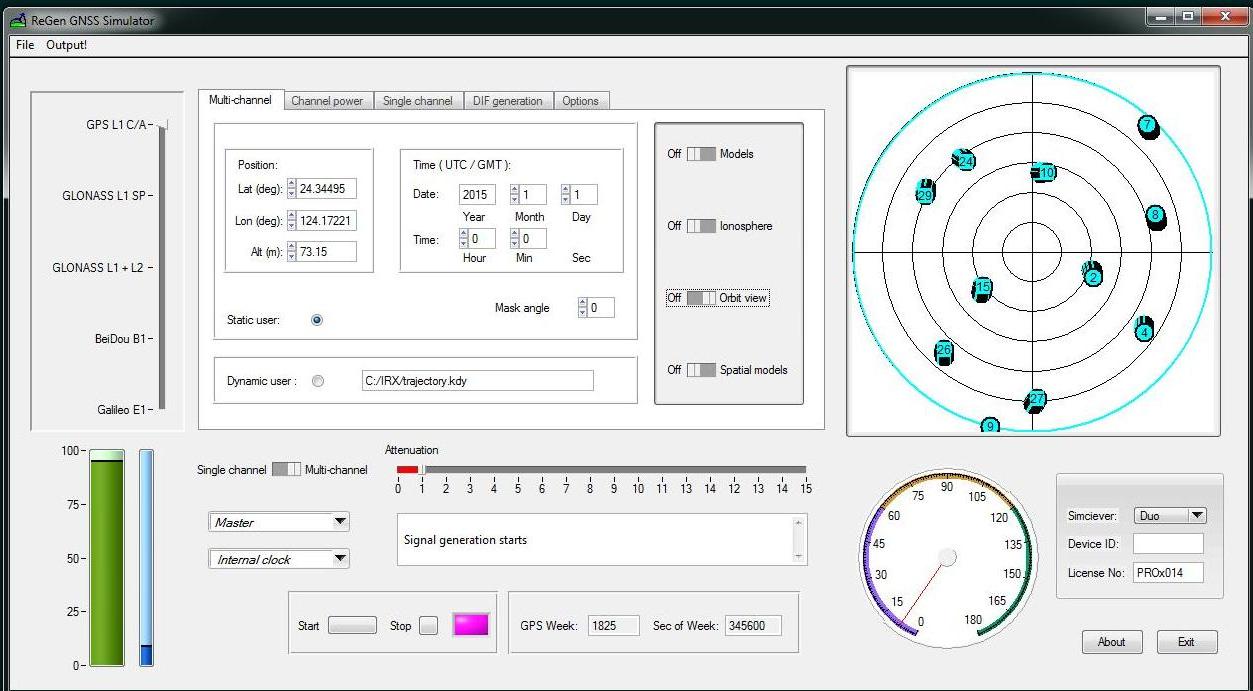

ReGen test with U-Blox GPS receiver:

budget, inexpencive, economical GNSS RF ReGen simulator test with uBlox GPS GLONASS receiver

budget, inexpencive, economical GNSS RF ReGen simulator test with uBlox GPS GLONASS receiver

Click for detailed view

ReGen ™ output is similar to one from live satellites, but with full control over the environment.

Simulated vs. live GPS signalTracking ReGen simulated signal (on the left) and live satellite signal (on the right) with iPRx receiver. Click to enlarge
